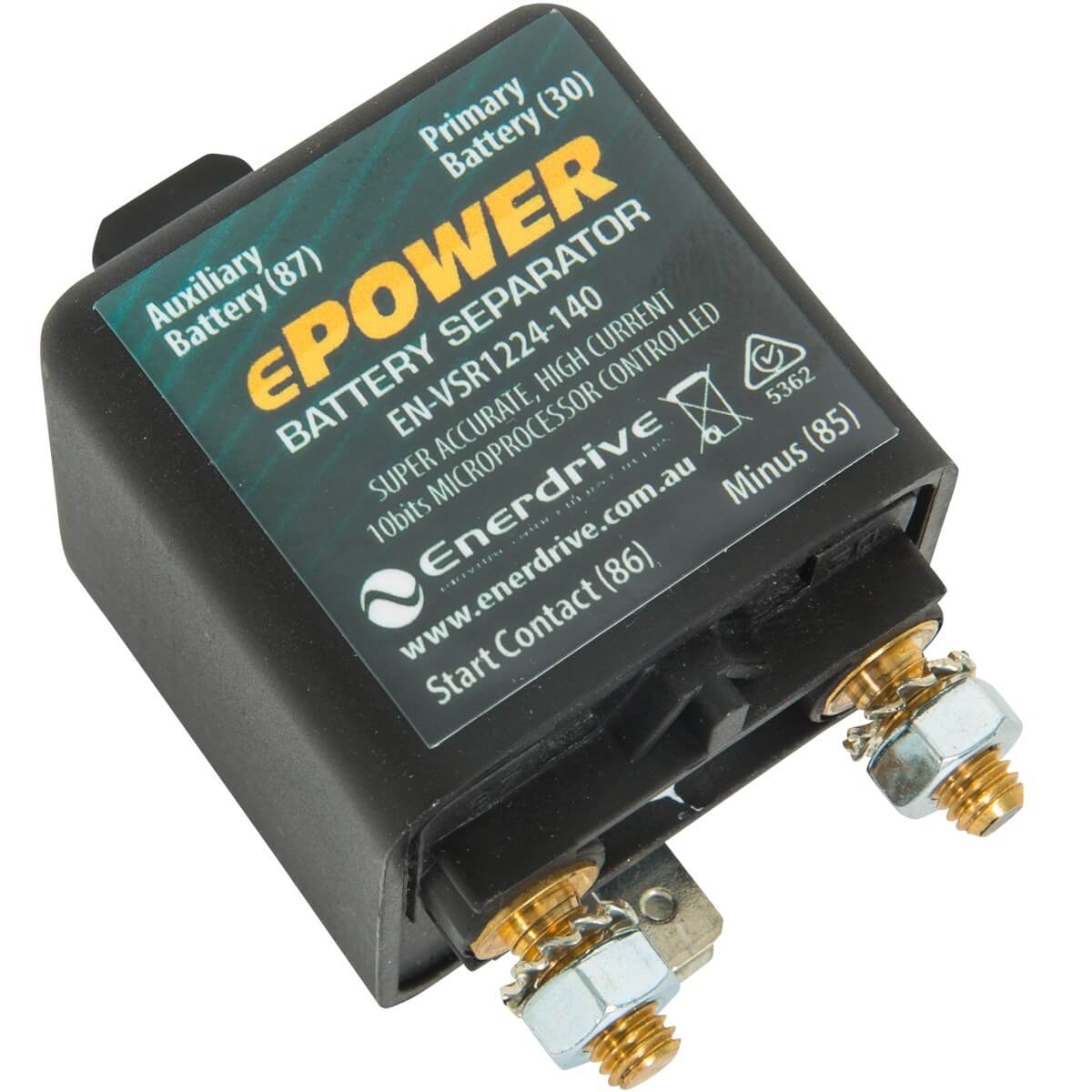

Enerdrive ePower 140A 12/24v Voltage Sensitive Relay

Name: Enerdrive ePower 140A 12/24v Voltage Sensitive Relay
Brand: Enerdrive
SKU: EN-VSR1224-140
Price: 100.0 AUD
Availability: InStock

$100.00 ~~$107.00~~

Tax included

Description

Features

When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.

Additionally, the ePOWER VSR range offers features like :

No voltage loss
Intelligent battery monitoring to prevent unwanted switching
Starter battery priority
Bipolar switching
Voltage dependent switching

Applications

Marine
Caravans
Camper vans
RV’s

Specifications

EN-VSR1224-140	10-bits precise µProcessor
Power supply	Auto detect 12 / 24V
Connection batteries	M6
Other connections	6.3mm faston
Cable suggestion	20mm2
Current consumption in OFF state	12V 1.5mA / 24V 1.5mA
Current consumption in ON state	13.5V 360mA / 27V 160mA
Minimum Charge time	60 sec.
Fast OFF	< 11.8V (12V) / < 23.6V (24V) after 4 sec.
IP Rating	IP54
Weight (kg)	0.11
Dimensions L x W x H (mm)	46 x 46 x 80

Note: Specifications subject to change without notice.

Delivery and Shipping

Most orders will be shipped same day if placed prior to 11am our time.

We offer a flat rate standard shipping of $15 on smaller items this covers the labor charge to pack and send your item along with consumables such as packaging, tape etc.

for orders under $200 express post will be $18.50

For orders over $200 we offer Free standard shipping This Excludes Paints, heavy items and bulky items

For express post on order over $200 will be an additional $4

Please note we do not ship some items such as paints, flares, heavy items like chain and anchors.

Some bulky and heavy items will have a freight surcharge added in you cart prior to check out.

If we don't have enough stock please contact us as we have deliveries and stock updates daily

Features

Additionally, the ePOWER VSR range offers features like :

No voltage loss

Intelligent battery monitoring to prevent unwanted switching

Starter battery priority

Bipolar switching

Voltage dependent switching

Applications

Marine

Caravans

Camper vans

RV’s

Specifications

EN-VSR1224-140	10-bits precise µProcessor
Power supply	Auto detect 12 / 24V
Connection batteries	M6
Other connections	6.3mm faston
Cable suggestion	20mm2
Current consumption in OFF state	12V 1.5mA / 24V 1.5mA
Current consumption in ON state	13.5V 360mA / 27V 160mA
Minimum Charge time	60 sec.
Fast OFF	< 11.8V (12V) / < 23.6V (24V) after 4 sec.
IP Rating	IP54
Weight (kg)	0.11
Dimensions L x W x H (mm)	46 x 46 x 80

Note: Specifications subject to change without notice.
