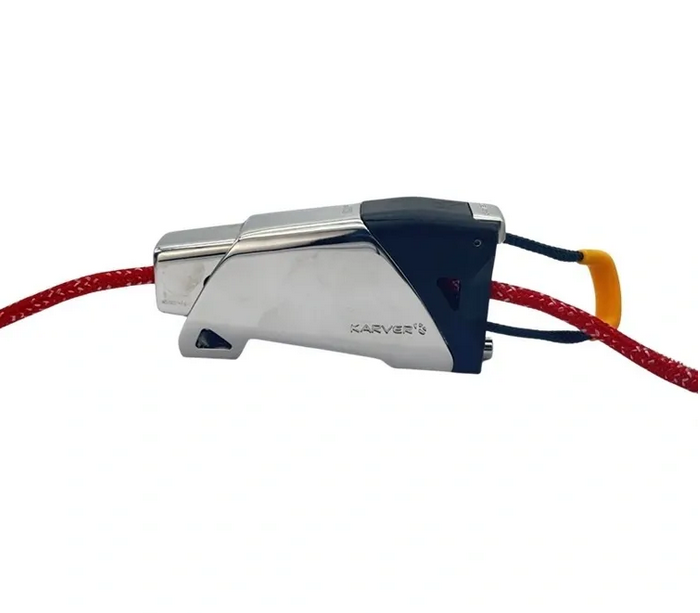

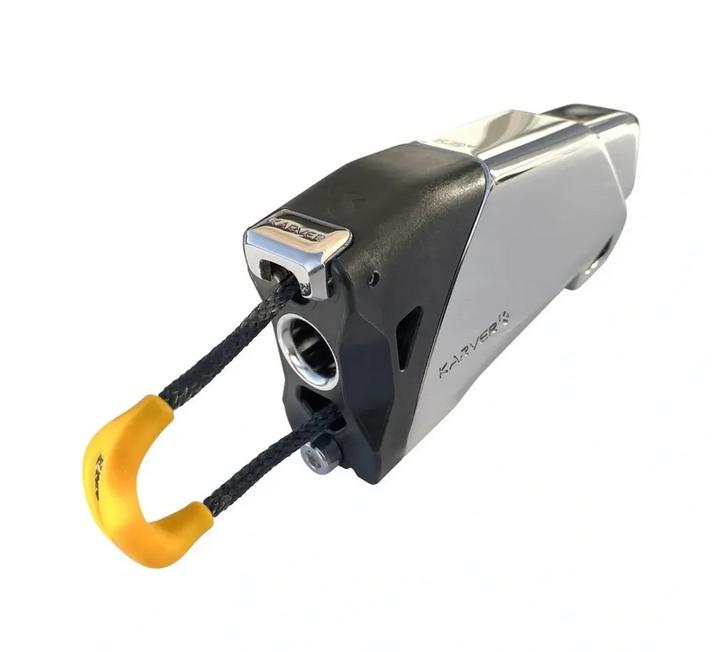

Karver KJS12 Clutch 8 - 12mm Line

DAME Award winning Karver KJS12 Clutch

This compact unit from Karver offers a number of benefits with the DAME jury noting: "every detail has clearly been studied by Karver's designers. The finished result offers improved durability and reduced rope wear, ease of seviceability and handling and incorporation of a colour-coding system."

The two-part grip pattern means the line is held over a greater surface area, making it both more efficient and kinder on the rope.

The trigger button design that replaces a traditional clutch handle is another neat feature that also enables remote operation.

The units are engineered for easy retrofitting, with bolt spacing identical to that of many popular models.

Equally, servicing is streamlined as the case doesn't need to be unbolted from the deck.

The KJS12 is a rope clutch capable of holding up to 1.2 tons for ropes up to 12mm. It meets the vast majority of needs for a cruising or racing sailboat.

Don’t be fooled by its traditional stainless steel appearance. You’ll find all the hallmarks of an efficient Karver clutch: eco-design, compact size, optimized weight, remote control capability, rope-friendly mechanism, and easy installation, use, and maintenance.

Features:

 – Eco-designed: Made of stainless steel die casting to reduce raw material, waste, environmental impact, and extend product lifespan.
– A clutch with a traditional appearance yet many unique advantages at a competitive price.
– The entire mechanism can be removed without detaching the base, ensuring easy installation and maintenance.
– Captive mechanism during disassembly: no lost parts.
– Wedge design to increase holding power on the rope.
– Ultra-low-friction sliding pads: less wear and easier opening.
– Dual movable jaws: reduced rope wear and less friction when open.
– No top handle: Like our high-load KJC jammers, the KJS has no upper handle, allowing it to fit into tight spaces and be operated remotely. It also prevents handle breakage.
– Remote control: In just 5 minutes, you can disable the open-position lock and operate it remotely with a single rope.
– 70 mm mounting distance, identical to many competitors.
– High-performance jaws based on our high-load KJC technology to protect ropes, especially their covers.
– Stainless steel construction also minimizes bulk, making the KJS12 particularly compact.
– Lighter than many competitors despite its stainless steel structure.

Specifications:

SWL 1200kg

BL  2400kg

Line size - 8-12mm (ideal 10mm)

Weight  557gm

Size 118,2 x 58 x 29mm

Hole spacing  70mm (Same as Spinlock XCS, XTS, XTR)
