Nodus Factory Block Loop Friction - Textile Loop for Ring 20278

Included

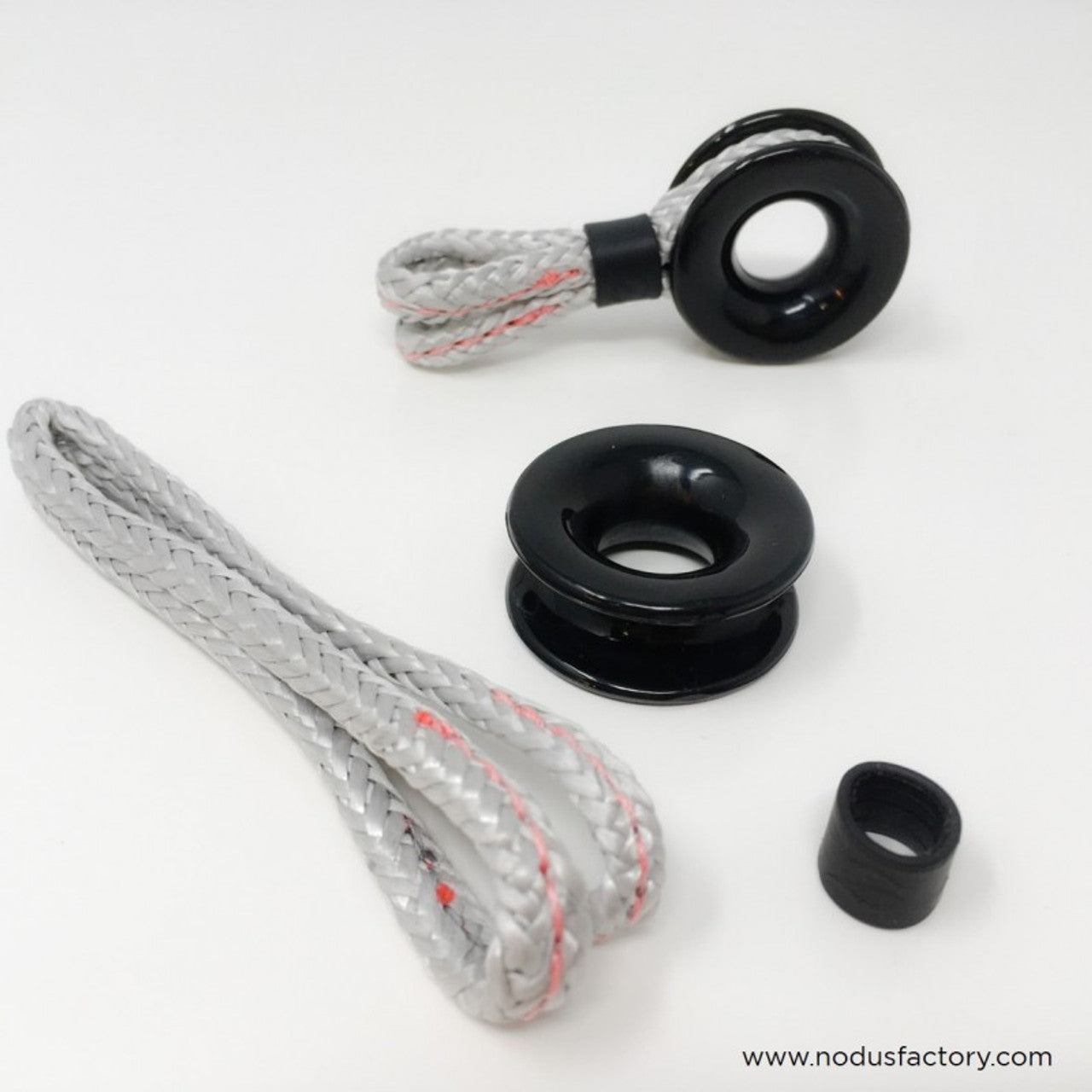

• 1 x friction ring
• 1 x dyneema loop
• 1 x keeper


  The Block-loop® friction, is a coated textile loop designed for a low-friction ring.

It is supplied with the locking ring, a product of the Plug and Sail™ range.

Uses

• Textile loop for rings, easy to use and designed for a heavy static load.
• To guide, deflect and haul any ropes, sheets for genoas, spinnakers, drum bosses barber-hauler and cascading backstay and many other applications.
• Ideal for the tack on an asymmetric spinnaker
• Static : friction ring Fr - resin
• Dynamic: friction ring FrD - duralumin

Specifications

• BL14 Friction Fr: Breaking Load 3800 kg; Loop Length 5 cm

Data Sheet

• Loop®, core and sheath made of 100% Dyneema® R2 12fx pre-stretched, coated - Light grey / black
• Block®, clamping and holding ring, made of flexible TPE thermoplastic which can quickly lock and fix a low-friction ring.
• Nodus Factory low friction ring™ made of Self-lubricating technical plastic resin ¬ black or FrD ring in duralumin - grey / orange

Advantages

• Requires no splicing, easy and quick to install.
• The Block® ring holds the textile strands parallel to uniformly and optimally distribute the working loads on the ring.
• Coated textile loop, resistant to chafing and UV.
• Reliable and maintenance free.

Nodus Tips

• You can use the Block-loop to strap your pulleys.
• Check the breaking load of the rings used.
• The Block® rings are clamping and holding rings, for pulleys and rings with low friction, on textile loops and with Nodus Factory shackles.

20278, 20279
