Ronstan 30QT Orbit Winch™ with QuickTrim™
Ronstan 30QT Orbit Winch™ with QuickTrim™ is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
RA6302
30QT Orbit Winch™ with QuickTrim™
Lightweight aluminium winch with QuickTrim™ self-tailer, 2 speeds, and Power Ribs™ for controlled grip on the line at all times.
FEATURES
Sprung self-tailing jaws to accept 7 - 12mm line.
QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
Smallest winch in its class with a powered option.
Proven Andersen winch gearing configuration.
Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
No tools required for configuration and servicing.
Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
Aluminium centre stem, lighter weight compared to bronze stems.
Low line entry due to gearing configuration geometry.

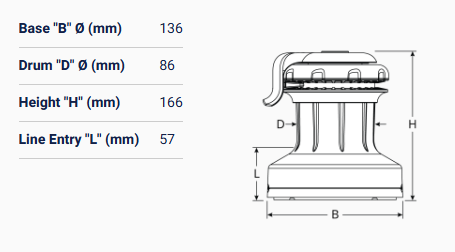

Specifications
| Max. Rope diameter (mm) | 12 |
|---|---|
| Weight (kg) | 3.1 |
| Performance Level | Performance Racing, Offshore Racing/Bluewater Cruising, Club Racing/General Cruising |
| Gear ratio 1st speed | 1.4:1 |
| Gear ratio 2nd speed | 5.2:1 |
| Power ratio 1st speed | 8.3:1 |
| Power ratio 2nd speed | 30.2:1 |
