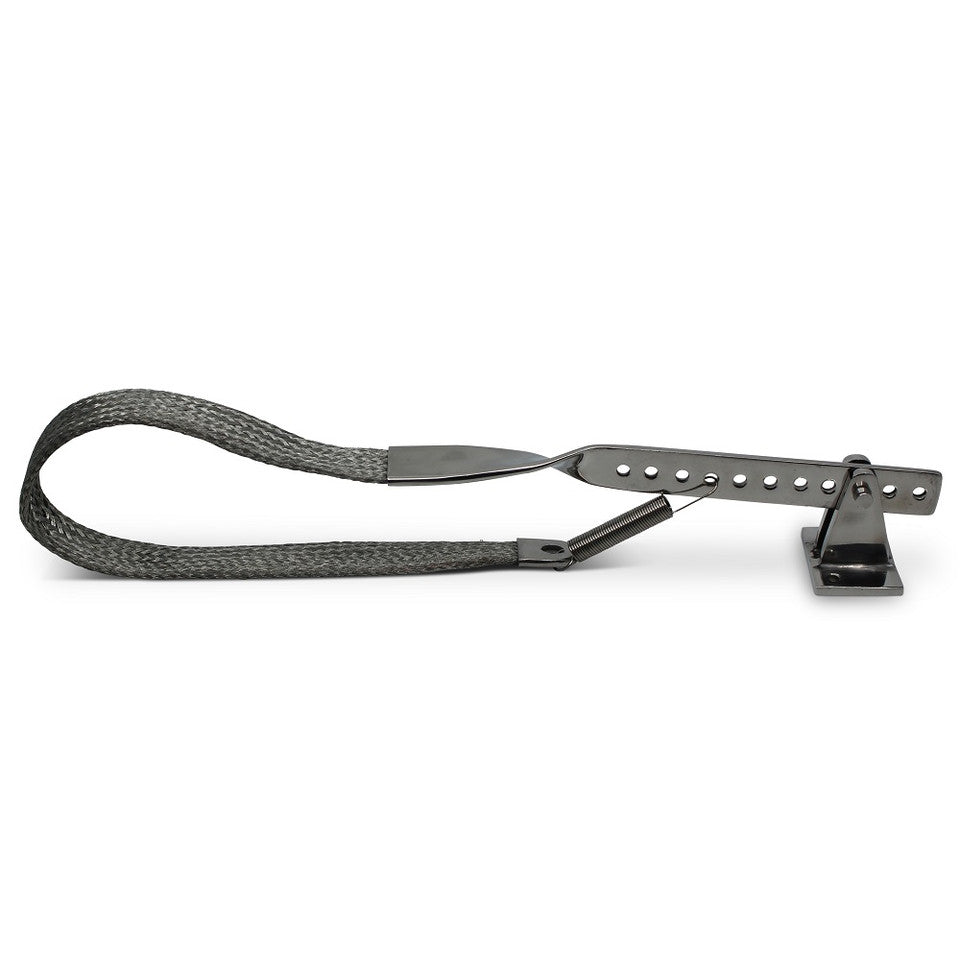

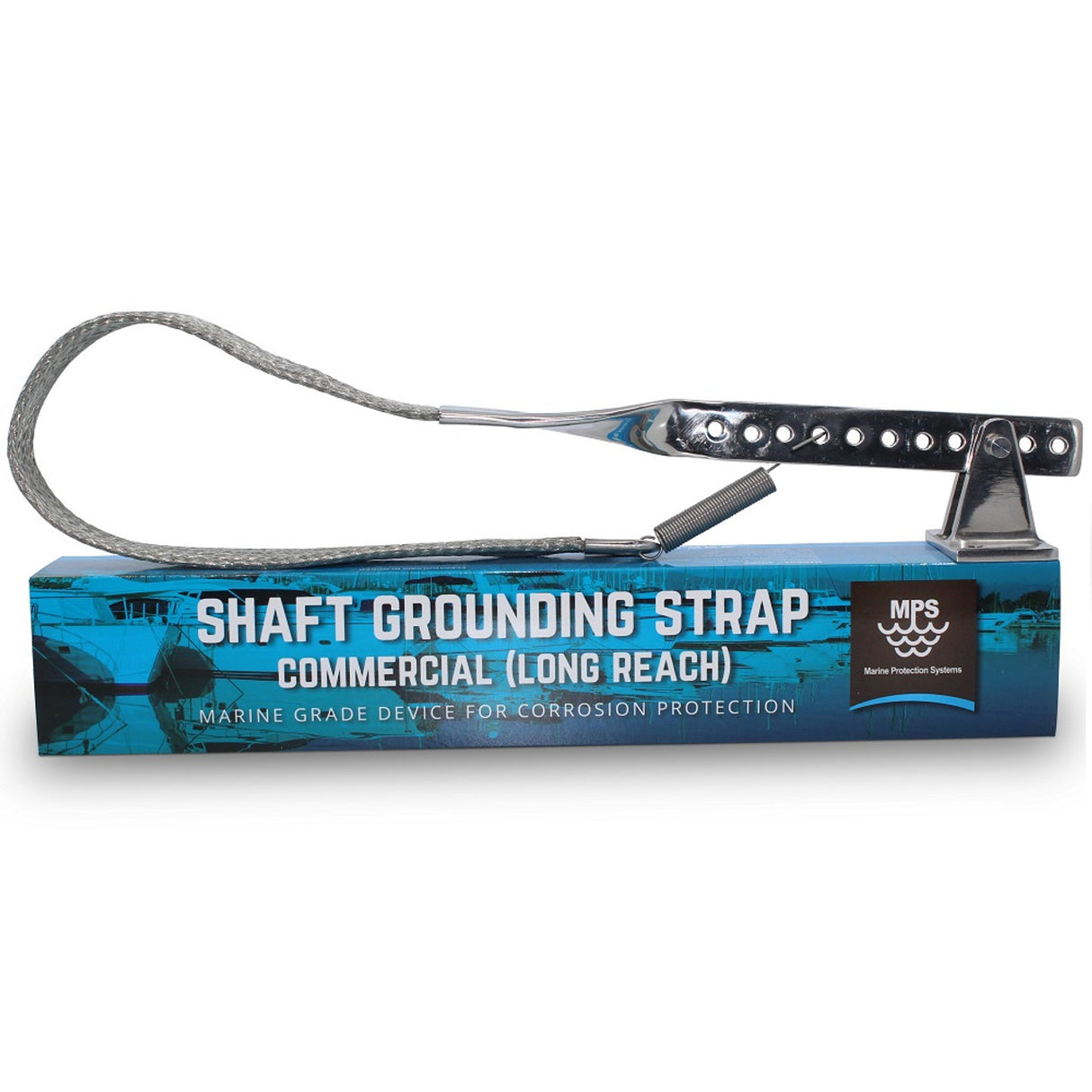

Maddox Commercial Shaft Grounding Strap

Marine Protection Systems - Commercial Shaft Grounding Strap

The Shaft Ground­ing Strap elec­tri­cally con­nects a ves­sels drive shafts to the Ves­sel Bond­ing Sys­tem and fur­ther reduces the inci­dence of gal­vanic cor­ro­sion on expen­sive metal drive parts.

How It Works

A vessel bonding system connects each of the submerged metal parts allowing their individual electrochemical potential to be grounded via the circuit. The Shaft Grounding Strap is installed to provide an efficient connection between shafts and the bonding circuit.  Your transom mounted Maddox anode is also connected to this circuit which enables it to sacrifice itself and protect the submerged metal parts.

MPS.SS10

• For use with 3-6" shafts

• 450mm Braid length

• Spring tension for easy installation and use

• Unmatched surface area connection to shafts

• Tinned copper braiding strap and back up bonding connection.

• 316 marine grade stainless pivot arm and mount

• 11 positioning holes to suit most drive shafts

• Spring loaded locking pins for easy adjustment
