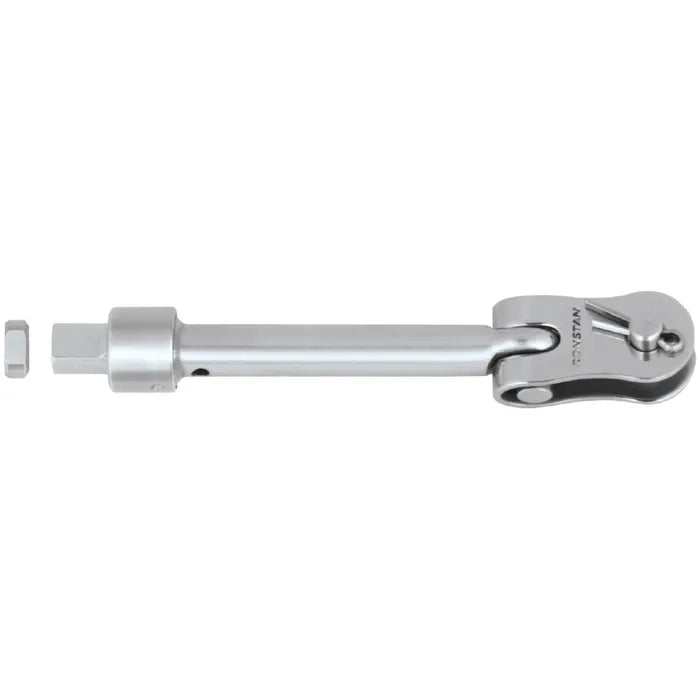

Ronstan Turnbuckle Body & Lock Nut, 5/16" Thread RF1480-05
Ronstan Turnbuckle Body & Lock Nut, 5/16" Thread RF1480-05 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
UNF Rolled Threads
FEATURES
Sleek modern profile.
Easy to adjust than conventional turnbuckles due to fine thread and single end adjustment.
Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort.
Easier to adjust than conventional turnbuckles due to single take-up by turning the unique adjustment nut.
Lock nut included to secure desired length.
Site hole to indicate minimum terminal engagement.
Use of dissimilar but compatible metals avoids the risk of thread seizure.
Toggle end provides full lateral articulation and connection compatability.
Threaded eye, toggle and swage terminal end options available
Specifications
| B.L. (kg) | 2360 |
|---|---|
| Weight (g) | 144 |
| Notes: | The sight hole relates to a length (L) slightly less than L MAX. If maximum length (L) is required the threaded end can be unscrewed beyond the sight hole, but the length must not exceed the specified L MAX dimension. Larger sizes available to order. |

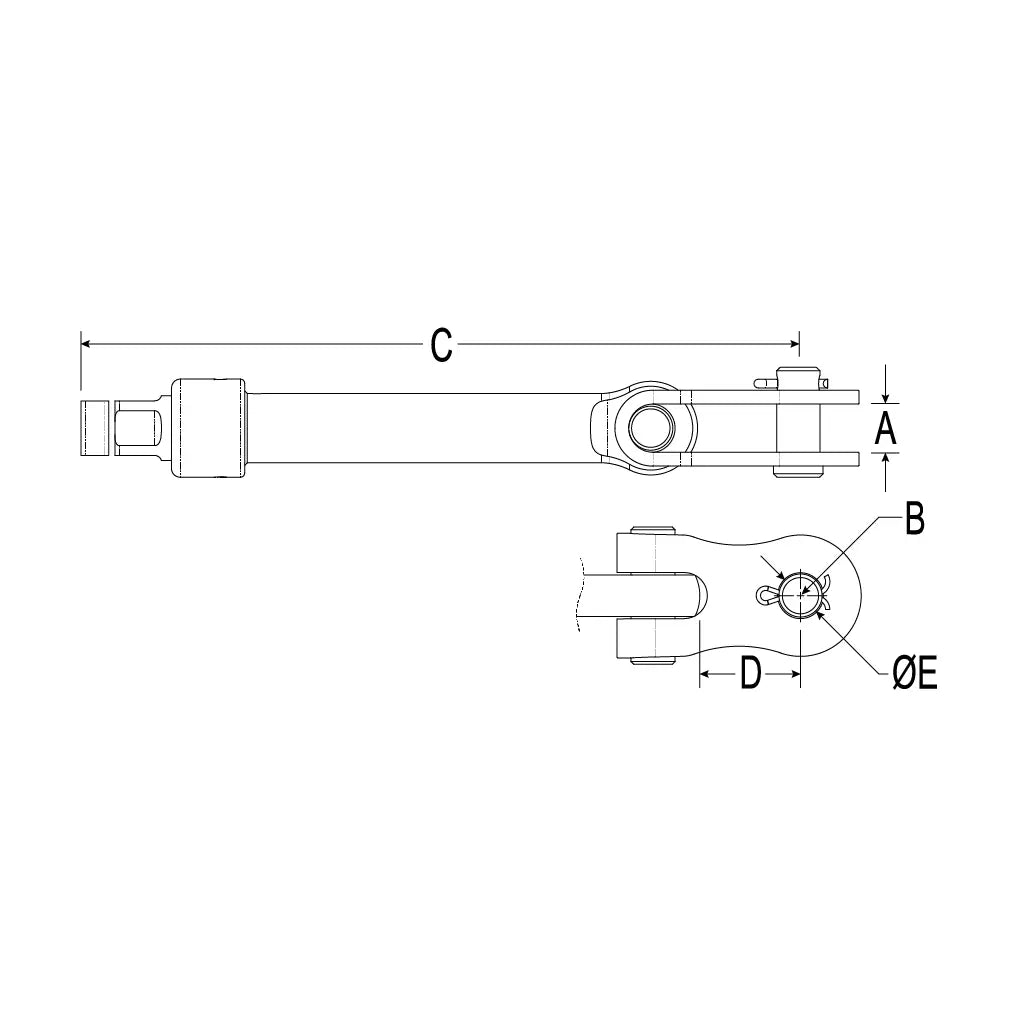

Specification Details
| A (mm) | 9.4 |
|---|---|
| B (mm) | 11.2 |
| C (mm) | 138 |
| D (mm) | 20.7 |
| E (mm) | 7.9 |
