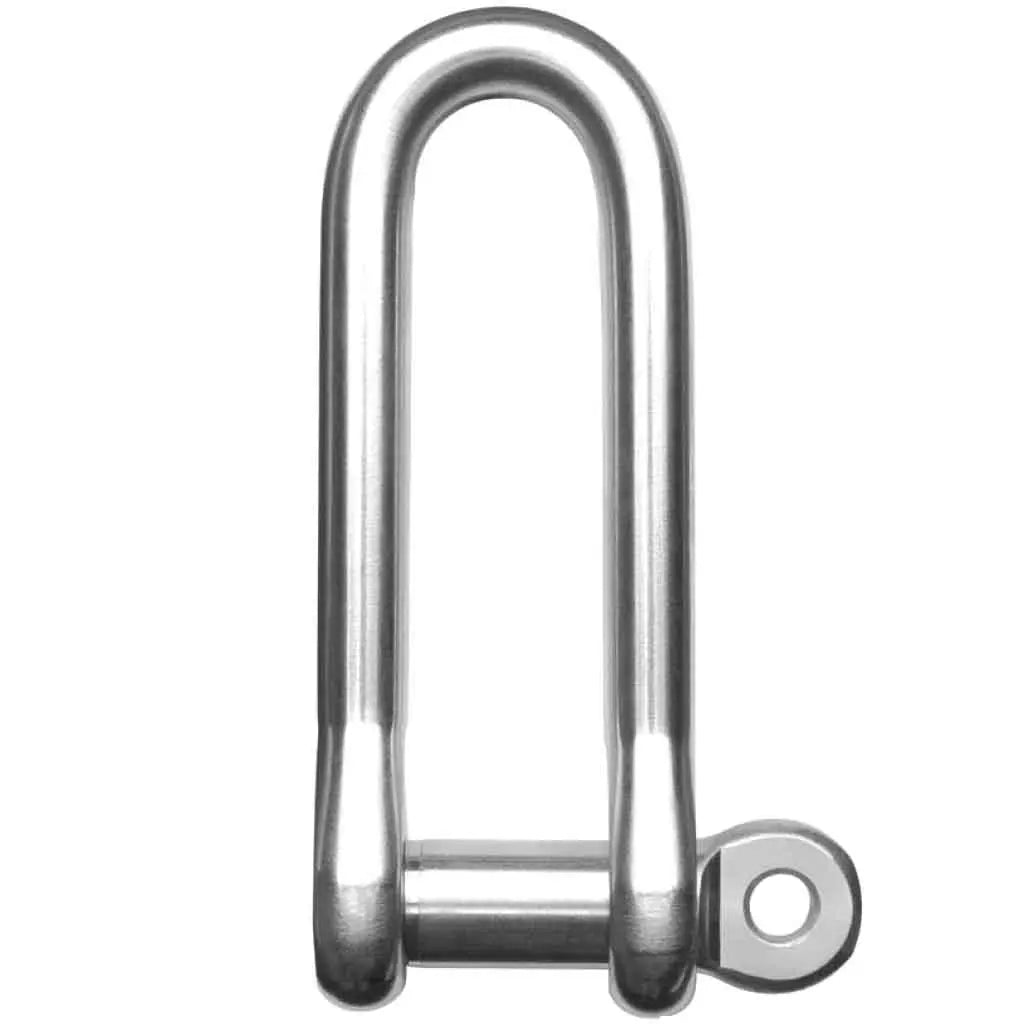

Ronstan Stainless Steel Long D Shackle, 1/2" Pin, Coined Head with Hole RF626
Ronstan Stainless Steel Long D Shackle, 1/2" Pin, Coined Head with Hole RF626 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Grade 316 stainless steel Long D shackle, 1/2" diameter pin with a coined shackle pin head and seizing wire hole.
FEATURES
High strength to weight ratio.
Premium quality, rated
Specifications
| Weight (g) | 155 |
|---|---|
| P.L. B.L. (kg) | 7500 |
| U.D.L. B.L. (kg) | 7700 |
| Shackle Pin Product No. | RF36 |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. Shackle pins drilled for seizing wire. |

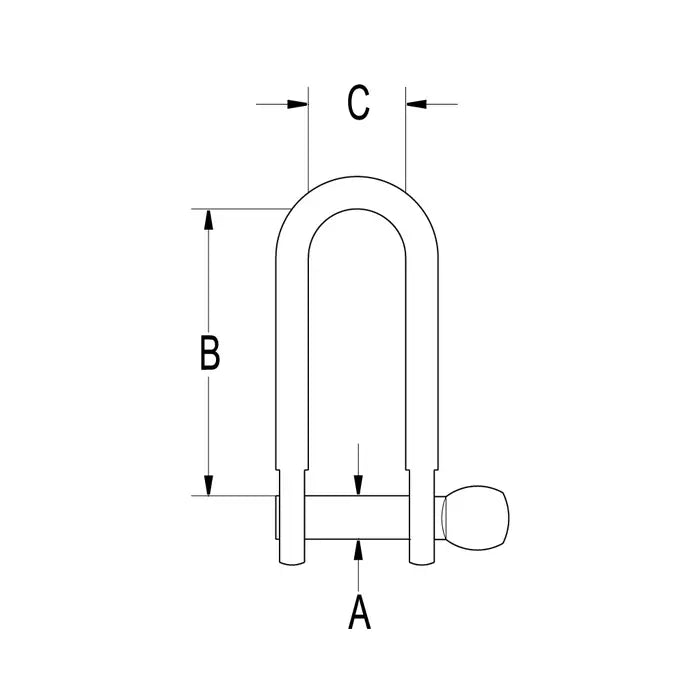

Specification Details
| A (mm) | 12.7 |
|---|---|
| B (mm) | 72 |
| C (mm) | 18 |
