Ronstan Stainless Steel Swivel Shackle, 3/16" Pins, Coined Head RF120
Ronstan Stainless Steel Swivel Shackle, 3/16" Pins, Coined Head RF120 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

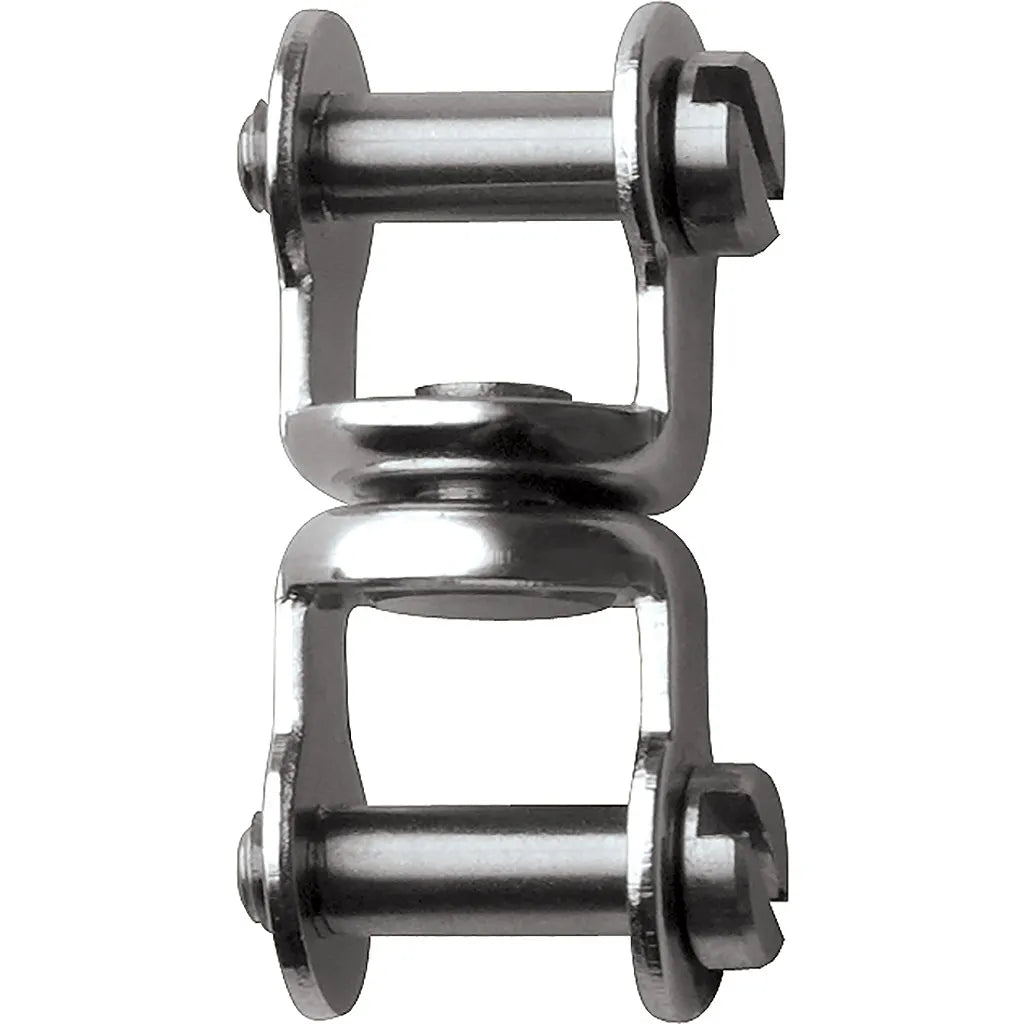

Grade 316 stainless steel Swivel Shackle, 3/16" diameter pins with coined shackle pin heads.
Specifications
| Weight (g) | 20 |
|---|---|
| P.L. B.L. (kg) | 650 |
| U.D.L. B.L. (kg) | 650 |
| Shackle Pin Product No. | RF32 |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. |

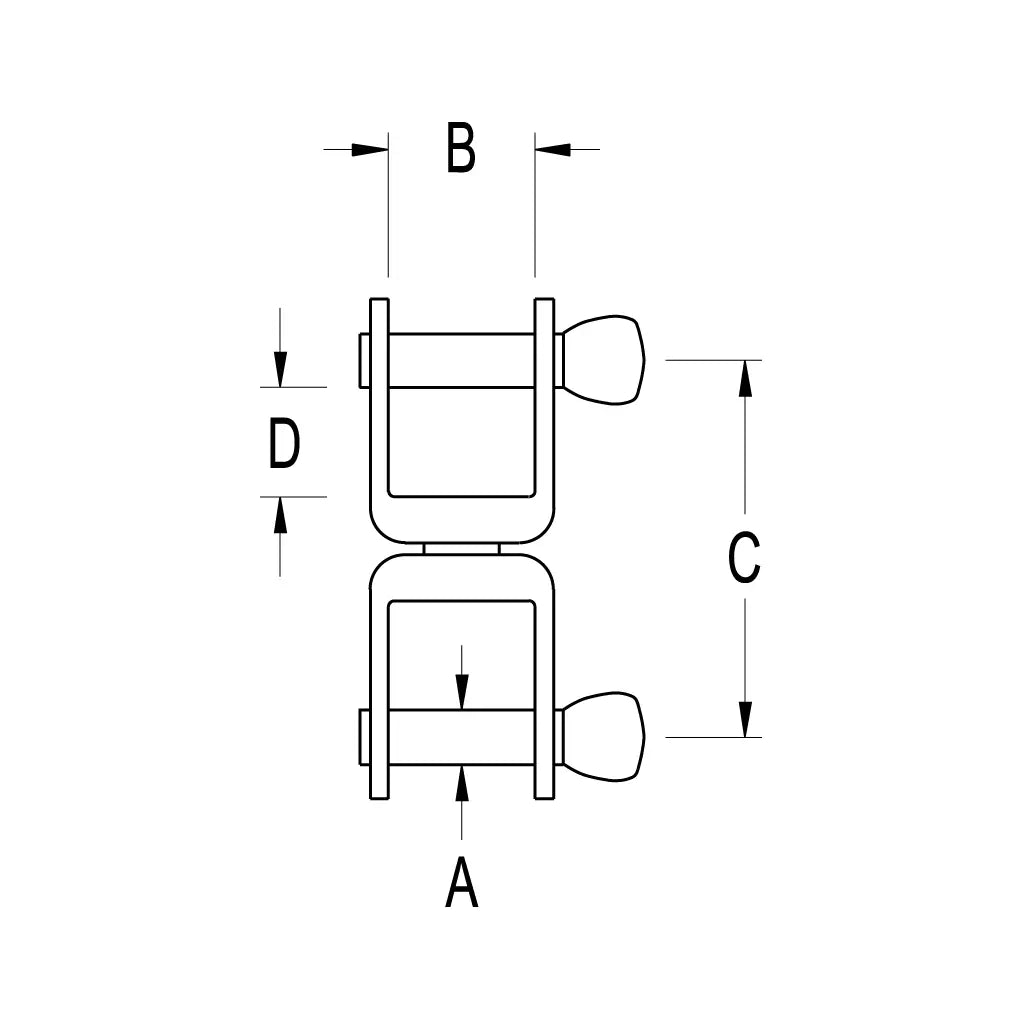

Specification Details
| A (mm) | 4.8 |
|---|---|
| B (mm) | 12 |
| C (mm) | 32 |
| D (mm) | 8.7 |
