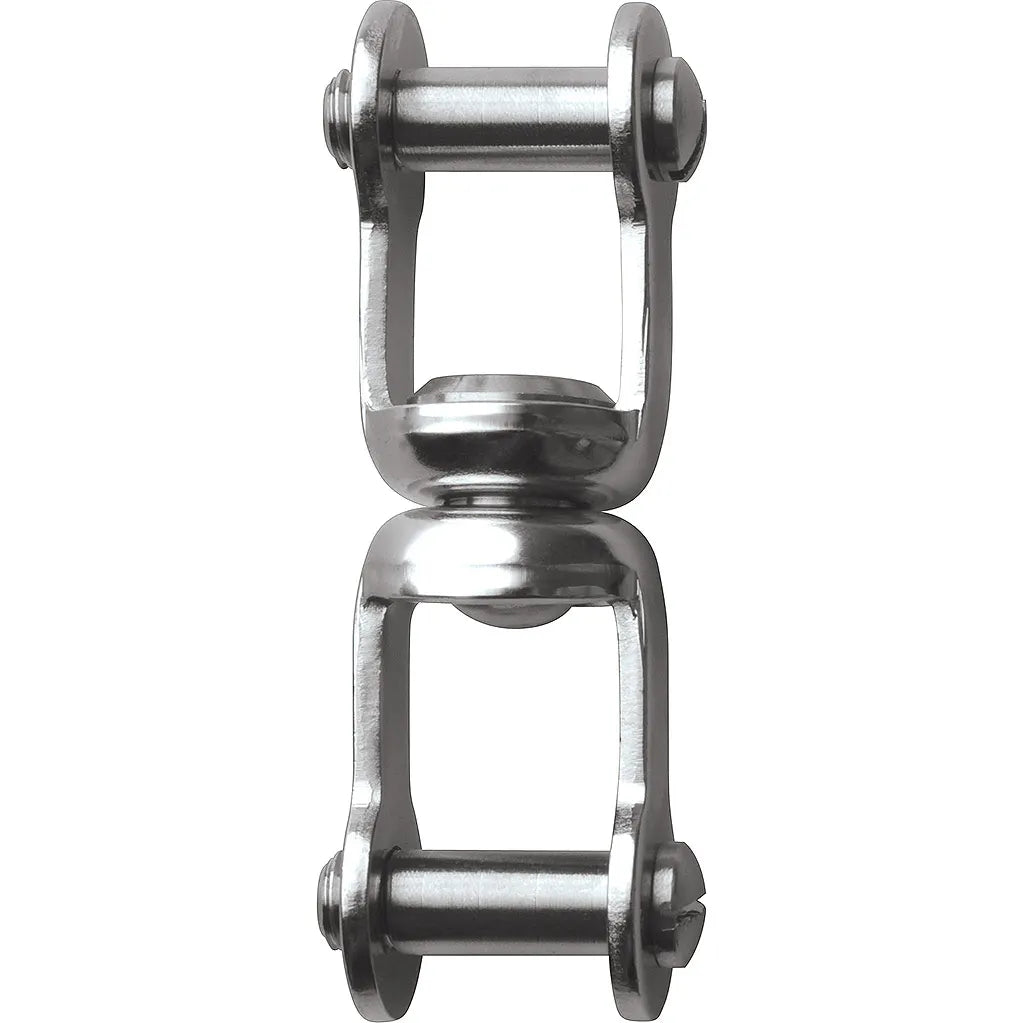

Ronstan Stainless Steel Swivel Shackle, 5/16" Pins, Slotted Head RF75
Ronstan Stainless Steel Swivel Shackle, 5/16" Pins, Slotted Head RF75 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Grade 316 stainless steel Swivel Shackle, 5/16" diameter pins with slotted shackle pin heads.
FEATURES
Stainless steel ball bearing race
Specifications
| Weight (g) | 80 |
|---|---|
| P.L. B.L. (kg) | 2100 |
| U.D.L. B.L. (kg) | 2300 |
| Shackle Pin Product No. | - |
| Notes: | UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin.PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin. This product has stainless steel ball bearings. |

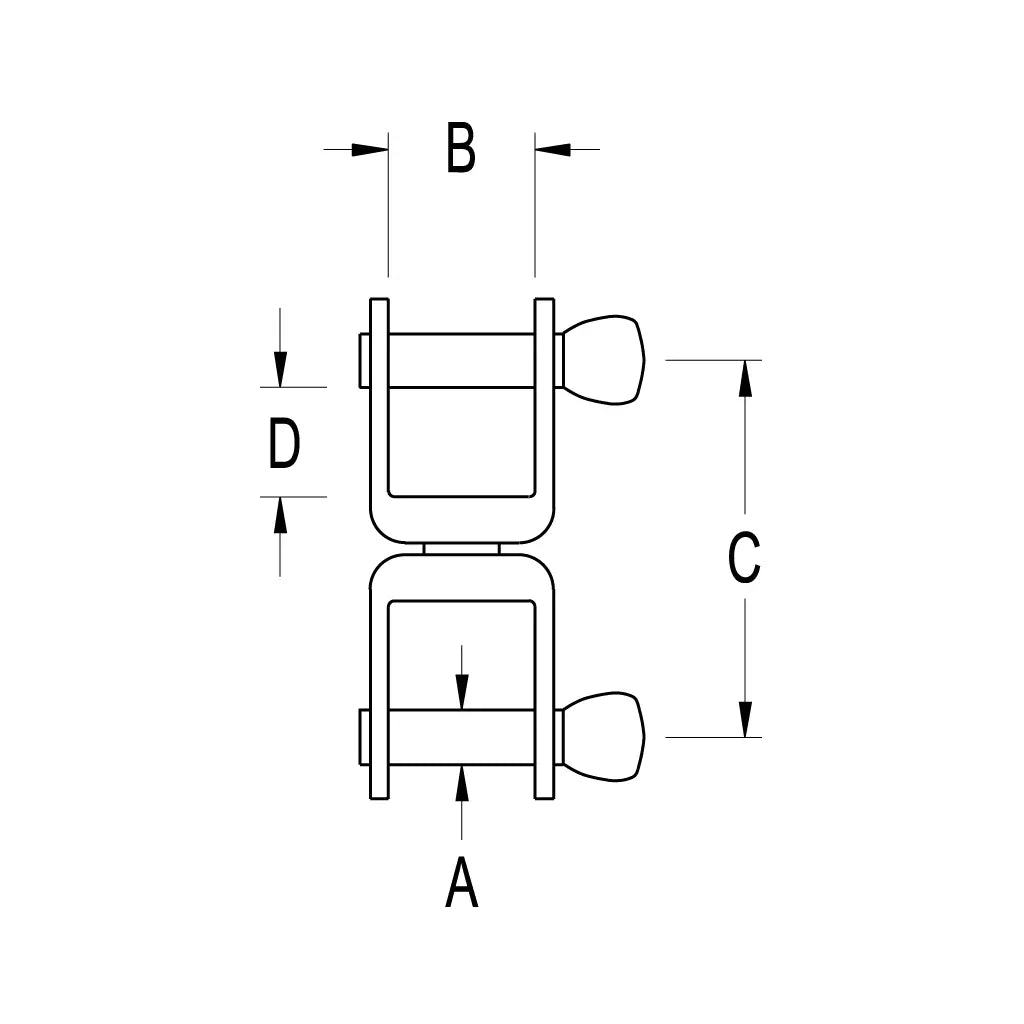

Specification Details
| A (mm) | 7.9 |
|---|---|
| B (mm) | 17 |
| C (mm) | 60 |
| D (mm) | 15.8 |
