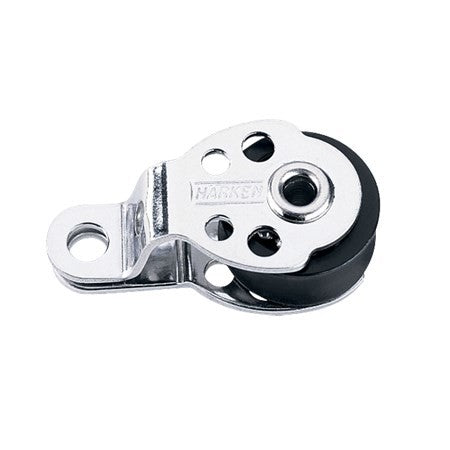

Harken 16mm Cheek Pivot Block 432

  • Sale
  • Regular price $33.00
  • Tax included.
  • In stock (2 units), ready to be shipped

The 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.

Sheave Ø (mm) 16 mm
Sheave Ø (in) 5/8 in
Length (mm) 35 mm
Length (in) 1 3/8 in
Weight (g) 11 g
Weight (oz) .38 oz
Maximum line Ø (mm) 5 mm
Maximum line Ø (in) 7/32 in
Maximum working load (kg) 113 kg
Maximum working load (lb) 250 lb
Breaking load (lb) 750 lb
Breaking load (kg) 339 kg
