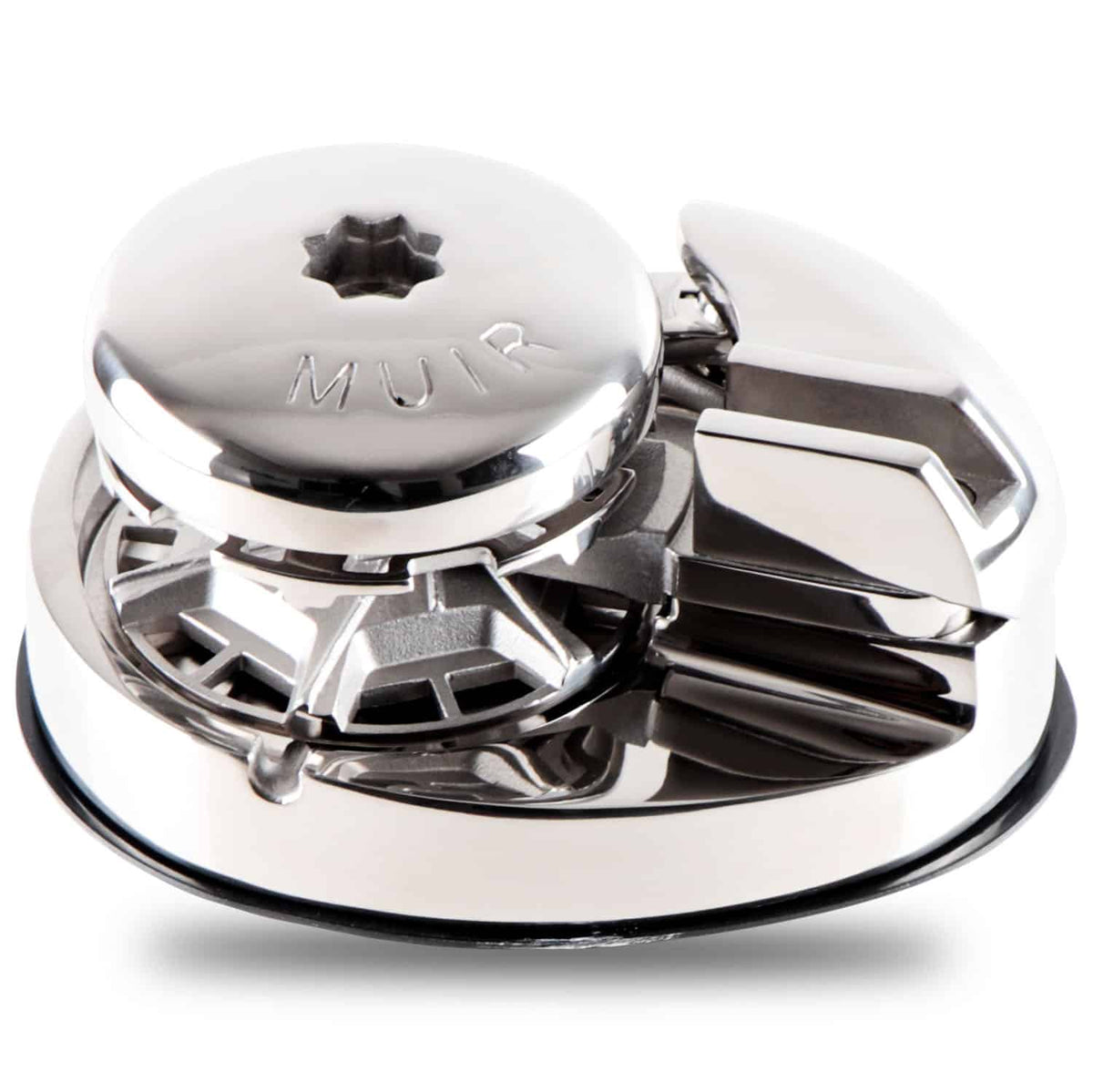

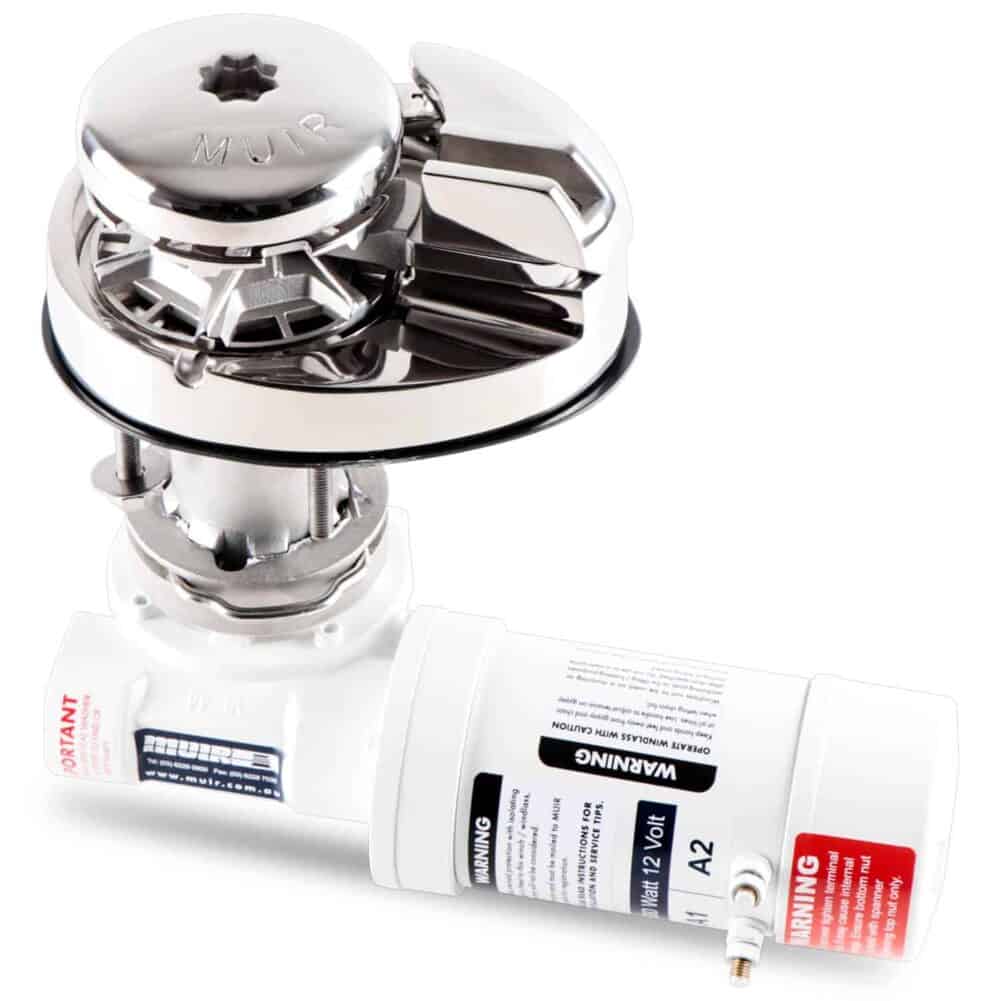

Muir Storm VR600 Vertical Stainless Steel Anchor Winch – 12V 600W Motor – Suits 6mm SL Chain and 12mm Rope (F101003)

The award winning Muir Storm series with luxury polished stainless steel finish revolutionises rope chain windlass technology. They are the preferred choice for high performance and smooth operation of ropechain or chain only anchor rodes.

Included in the package
Circuit Breaker & Mounting Panel
Rocker Switch
Deck mounting studs & fasteners
Clutch release handle small
Reversing Solenoid kit
Installation/Operation booklet

Technical Specifications
Name    Specifications
Recommended Vessel Length(m)    5-9m
Recommended Vessel Length(ft)    16 - 29ft
Power Supply Options    DC 12V, DC 24V, DC 48V
Recommended Muir Circuit Breaker
80A (12V)

Motor (Watts)    550Watts
Amps Workload    75A/40A (12/24V)
Distance From Battery to Motor (m)    7 (23’)m, 9 – 17 (30’ – 55’)m
Cable Size (mm²)    25mm², 70mm²
Cable Size AWG    1/0, 4
Cable Diameter (mm)    12 – 15 (7/16” – 19/32”)mm, 8 (5/16”)mm
Solenoid Included    Yes
Max Load    369Kg
Workload    124Kg
Max Line Speed    25m/min
Compatible Chain Sizes    6 mm (1/4") - 7 mm (7/25")
Compatible Rope Sizes
6 mm (1/4″) – 12 mm (1/2″)

Auto Anchor Compatible    Yes
Net Weight DC    12Kg
Manual Operation    N/A
