NMEA-2000 Terminator - Female

$26.00 $29.00
Tax included

Description

High quality NMEA-2000 compatible cables and connectors that are perfect for marine electronics communications. Compatible with NMEA-2000 enabled chart plotters, fish finders and sounders. The range covers backbone cables, tee's, resistive terminators,elbow connectors, multi-junction connectors and starter kits.

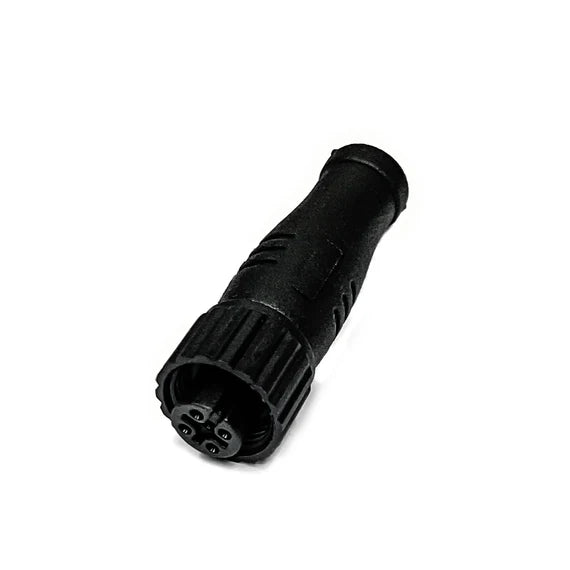

NMEA-2000 Terminator - Female

Terminators are required on each end of the network backbone to ensure signal integrity. Terminators are available with either a male or female coupler to attach to either side of a tee connector at the end of a backbone.


    Connector Technical Data
    Pins
    5
    Reference Standard
    IEC 61076-2-101
    Rated Current
    4 A
    Rated Voltage
    60 V
    Impulse Voltage
    1500 V
    Locking system M12 x 1.0 screw / M12
    Tightening Torque Recommend?0.4Nm, Max?0.8Nm
    Termination Soldered
    Rated temperature Flexible ?25 °C ... +80 °C, Static ? 40 °C ... +80 °C
    Insulation resistance ?100M?
    Contact resistance ?5m?
    Resistor 120?±1%, 0.6W
    Over-molding TPU
    Contact carrier PA66 + GF
    Screw Nut
    PA66 + GF
    Contact Brass ; Phosphor bronze
    Contacts plating Au (Gold)
    O-ring FKM
    Protection degree IP67
