Nodus Duralumin Friction ring FRD14

  • Sale
  • $25.00
  • Regular price $30.50
  • Tax included.
  • In stock (11 units), ready to be shipped


Duralumin Friction ring®

 20115

FrD® the Nodus Factory® friction ring is an hard anodized aluminium ring with a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope.

Description

FrD® the Nodus Factory® friction ring has a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope.

This product allows an infinite number of combinations, especially where peak loads are the rule, such as backstays, cascade dumbbells, barbers and many others.

+ USES
  • Mast foot, in-hauler
  • Barber, in-haulers or as spare pulley
  • Tackle (Mainsail, vang, running backstay, etc.)

Advantage

  • High mechanical resistance
  • High impact and UV resistance
  • Low coefficient of friction
  • Reliable and maintenance-free

Product

Name

Breaking Load

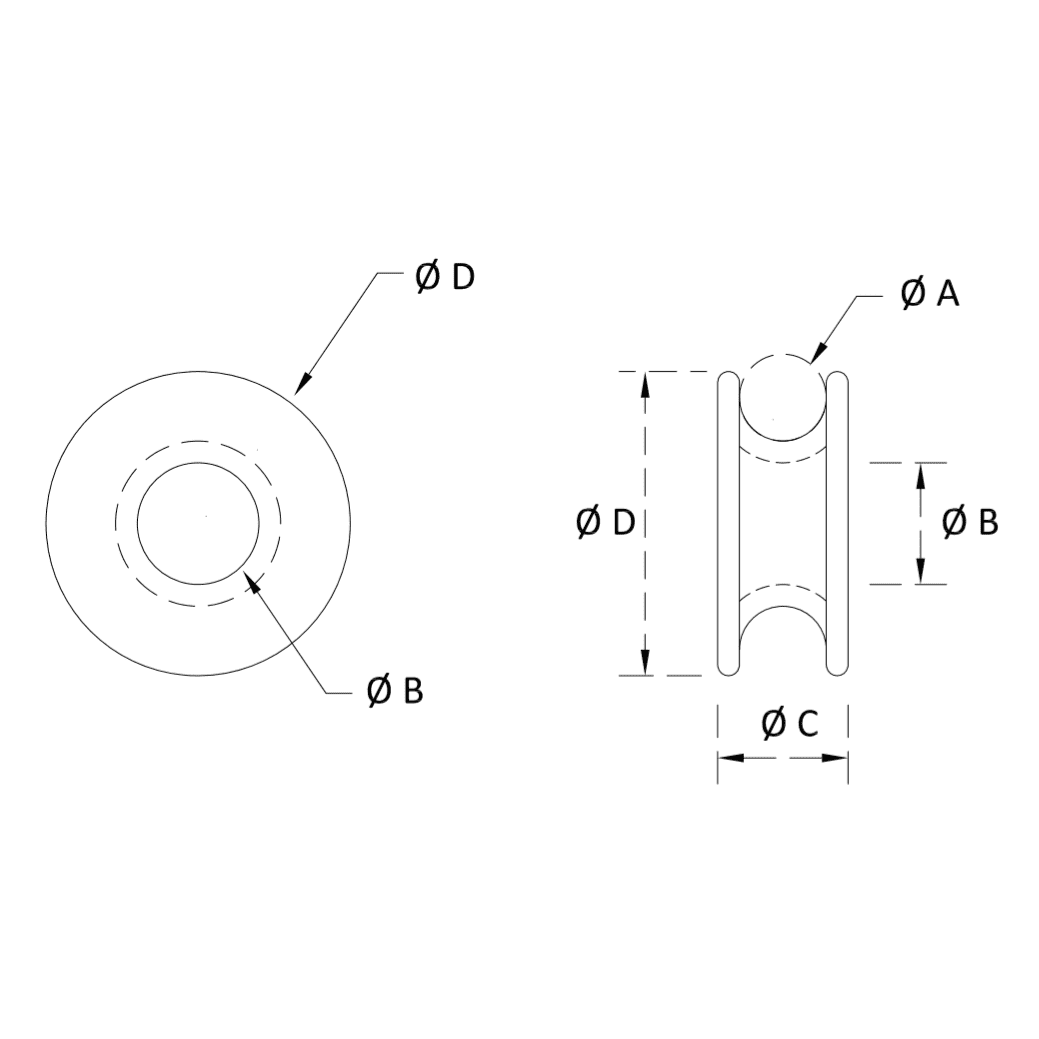

Ø A Ø B Ø C Ø D

Ø Rope

Recommended

Weight
Angle  0° Halyard and sheet
Duralumin KG mm mm mm mm mm gr







FrD 14 1800 11 16 16 40 10 max. 16
