Ronstan 50QT Orbit Winch, 2-Speed, QuickTrim
Ronstan 50QT Orbit Winch, 2-Speed, QuickTrim is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
RA6502

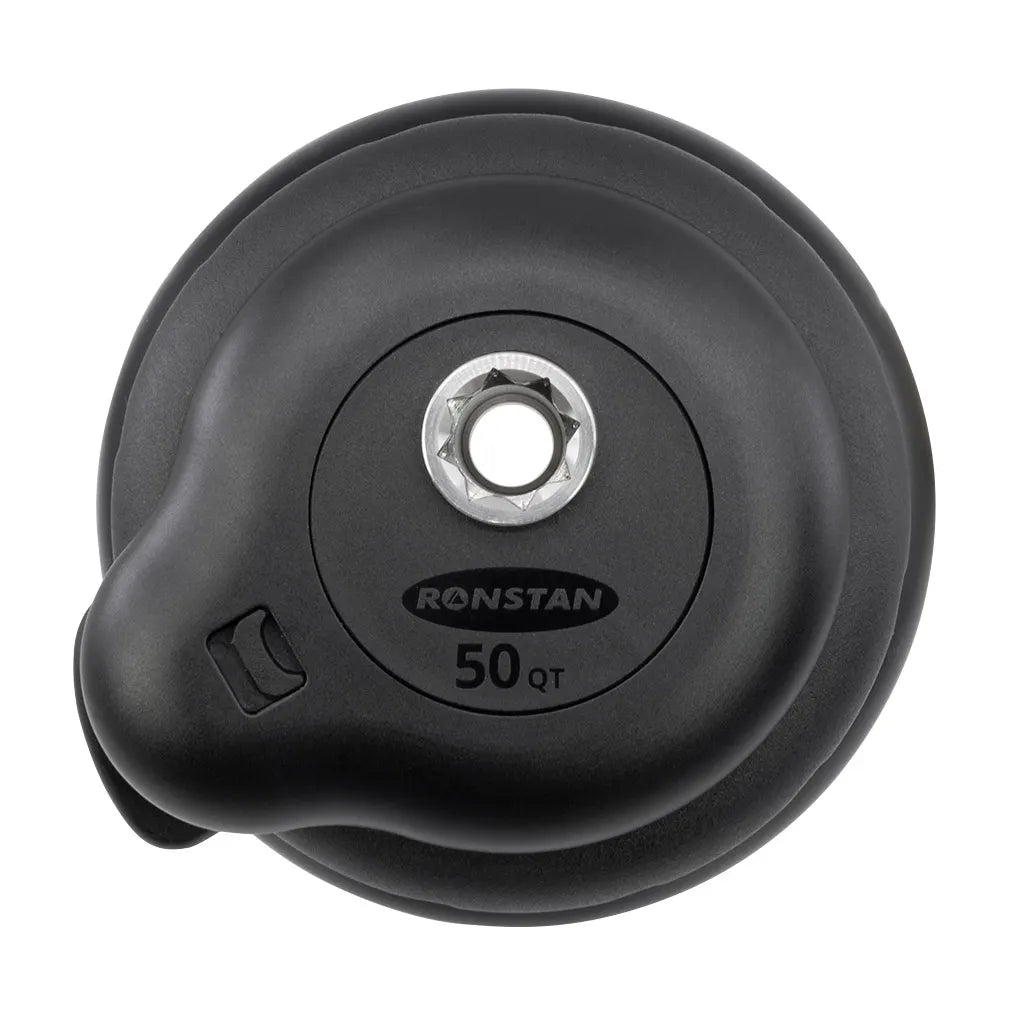

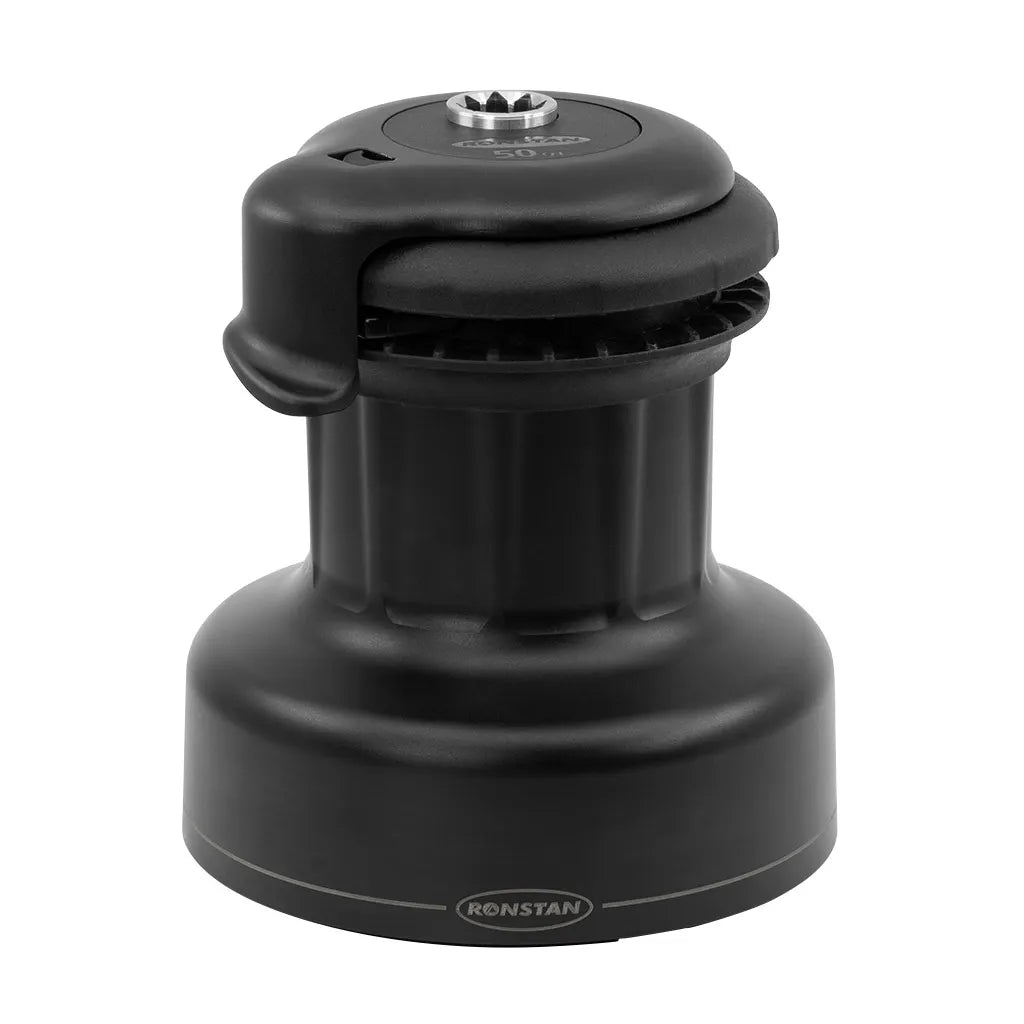

50QT Orbit Winch, 2-Speed, QuickTrim
Lightweight aluminium winch with QuickTrim™ self-tailer, 2 speeds, and Power Ribs™ for controlled grip on the line at all times.
FEATURES
Sprung self-tailing jaws to accept 8 - 14mm line.
QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
Proven gearing configuration.
Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
45QT and 50QT available as three-speed models.
Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
Low line entry due to gearing configuration geometry.

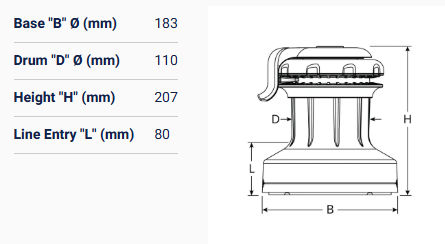

Specifications
| Weight (kg) | 5.4 |
|---|---|
| Performance Level | Performance Racing, Offshore Racing/Bluewater Cruising, Club Racing/General Cruising |
| Gear ratio 1st speed | 3.0 : 1 |
| Gear ratio 2nd speed | 10.8 : 1 |
| Gear ratio 3rd speed | - |
| Power ratio 1st speed | 13.4 : 1 |
| Power ratio 2nd speed | 49.3 : 1 |
| Power ratio 3rd speed | - |
| Line Size (mm) | 8-14 |
| Max Pull (kg) | 1350 |
