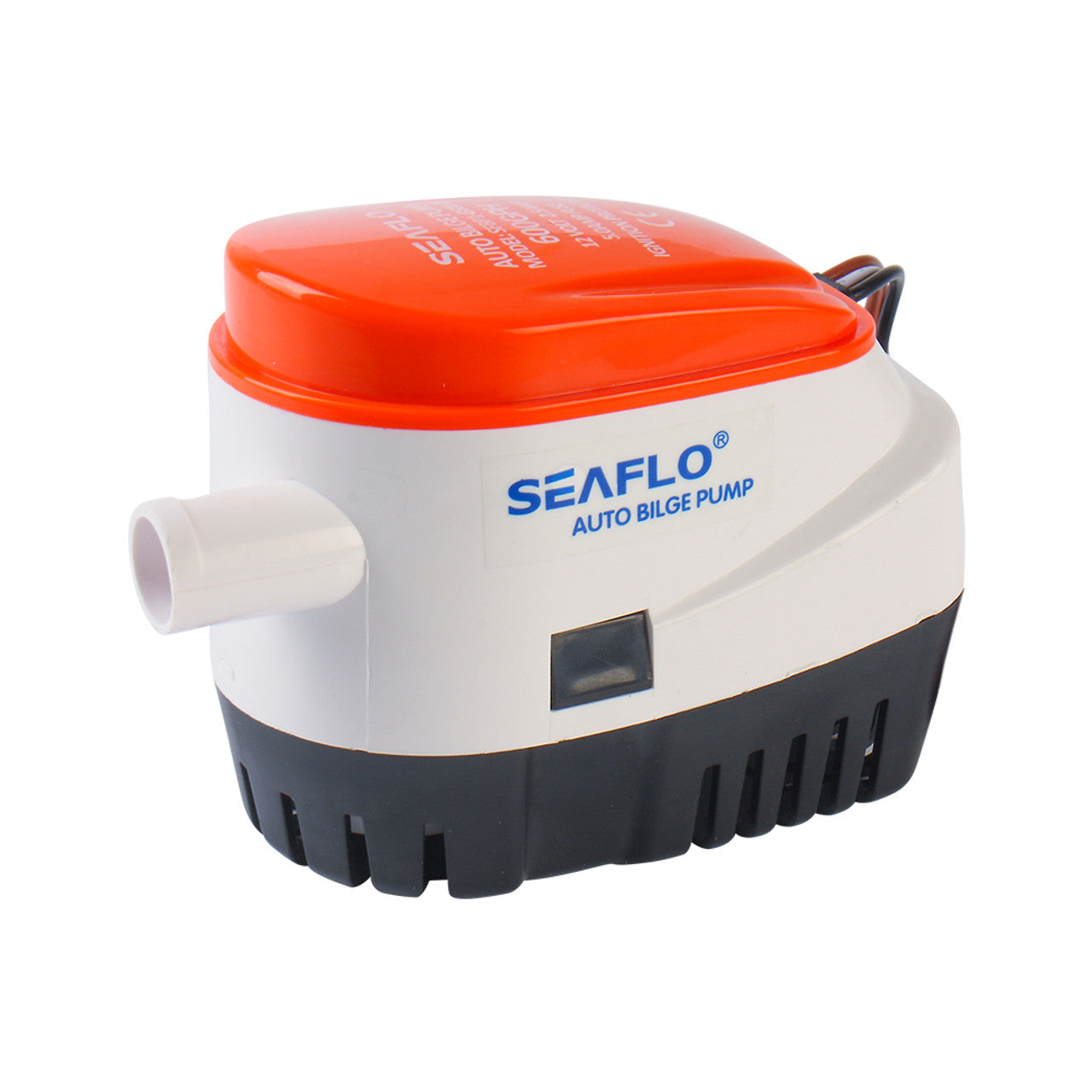

SEAFLO 06-Series Automatic Bilge Pump (12V | 600GPH)
SEAFLO 06-Series Automatic Bilge Pump (12V | 600GPH) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Get rid of accumulated water in the bilge in no time with the Seaflo Auto Bilge Pump. This submersible bilge pump is fitted with a stainless steel shaft and a heavy duty motor with an impact resistant ABS housing. The best part, it's fully automatic! No separate float switch is needed and no power is used until pump turns on when water rises. This pump is available in 600 gallons per hour flow rates - perfect for general use. It's comforting to know that if your boat takes on water you can pump it out fast.
Installation Instructions
When the brown white wire of the auto bilge pump is connected to the battery's positive (+) terminal, the black wire is connected to the battery's negative (-) terminal, the pump has automatic function.
1. When the water level rise above the bottom flay surface of the strainer 40-50mm, the float switch's contact point is connected then the pump works.
2. When the water level dropped to 20-30mm above the bottom flat surface of the strainer, the float switch's contact point is disconnected, the float switch stops working, and then the pump ceases to work meanwhile. When the brown wire of the auto bilge pump is connected to the battery positive (+) terminal, the black wire is connected to the battery's negative (-) terminal, this pump is same as the ordinary bilge pump and has no automatic function.
Seaflo Auto Bilge Pump Features:
- Equipped with built in electronic controlled reed sensor system to make fully automatic operation easy
- No separate float switch is needed
- No power use until pump turns on when water rises (Auto bilge pump)
- Compact, rust and corrosion protected stainless steel shaft, high-impact durable and thermoplastic ABS plastic housing
- High Flow:
- Small size, high efficiency, low current
- Totally submersible and ignition protected with anti airlock design and moisture tight seals
- To all existing safety standard
- Snap-lock strainer base for easy installation and removal and silent vibration-free running
- Run dry with no problem
Seaflo Auto Bilge Pump Specifications:
Model | Flow Rate (GPH) | Volts (V) | Current (A) | Head (M | Wire Lead (M) | Outlet Diameter | N.W/G.W (Kg) |
---|---|---|---|---|---|---|---|
SFBP1-G600-06 | 600GPH | 12V | 2.5A | 3m | 1m | 19mm/3/4" | 0.47/0.52kg |
